2017 HANDY HITCH GBP12HD $20,353.00 CAD
 Type: Compactor/Roller
  Location:  Alberta, Canada
Company Info.

TomCat Sales & Rentals
Box 1358
Red Deer, Alberta   T4N 7B6
Canada


Contact Info
Jim Murray
Ph: (403) 396-1208
Website: www.TomCatSales.com
Fax: (403) 358-5349
Cell: 403-396-1208

More Photos >>
Features
  Handy Hitch Gravel Ballast Packer/Rollers have been designed to be the Industry Leader in Box & Frame Construction
  Heavy Duty Main Pivot Point, complete with Greaseable Dish and Replaceable Heavy Duty Front Beam Pin
  Heavy Duty Front Frame Construction and Replaceable, Greaseable Hardened Main Pivot Pins and Bushings for Easy Access and Scheduled Maintance
  EASY ACCESS 6000Lb Double- Ended Spindles and 14 PLY Tires
  6 - Bolt Easy Acess Spindles for Quick Tire Change and Rim Replacement

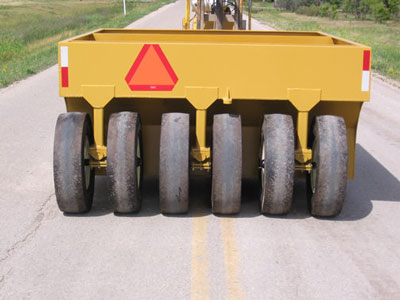

  12 Wheel Gravel Ballast Pull Type Wobbly Wheel Packer
  92" Overall Frame Width
  90" Overall Packing Width
  134" Overall Frame Length
  51" Overall Height
  5877 Lbs Empy Weight
  20,781 Lbs Full Weight
  142 Cu Ft Capacity (Filled)

Notes
COMPARISON OF HANDY HITCH GB12HD VS WRT PT13..:20,787 LBS FILLED WEIGHT VS 16,850 LBS..5877LBS EMPTY WEIGHT VS 4250LBS,..1/4" WALL THICKNESS VS 1/4",..3/8" PAN THICKNESS VS 1/4",..1/2" BOTTOM THICKNESS VS 1/4",..14 PLY TIRES VS 6PLY,.. 6000LBS STEEL WHEELS/HUBS VS 3500LB, ..142 CU FT CAPACITY VS 120 CU FT,.. 2" GREASABLE LEG PINS VS???,.. 2" GREASABLE BEAM PINS VS???,..1/2" SADDLE PIVOT PLATE VS???, ..1/2" INSIDE STIFFNER PLATE VS???,.. 1/2" BOTTOM STIFFNER PLATE VS???,.. 5/8" X 21" O.D. SWIVEL PLATE VS 12",.. ALL PINS GREASEABLE YES VS ???,... 2" HARDENED PIVOT PIN VS BRONZE BUSHING,.. ALL BEARINGS GREASABLE VS ???,.. HD A FRAME HITCH VS LIGHT DUTY,.. 4"X4"X3/8" HSS DRAWBAR VS 2"X4" CHANNEL,,, 1/4" STIFFNER OVER A FRAME VS ???,.. 1 1/2" MACHINED PINS VS ???.
